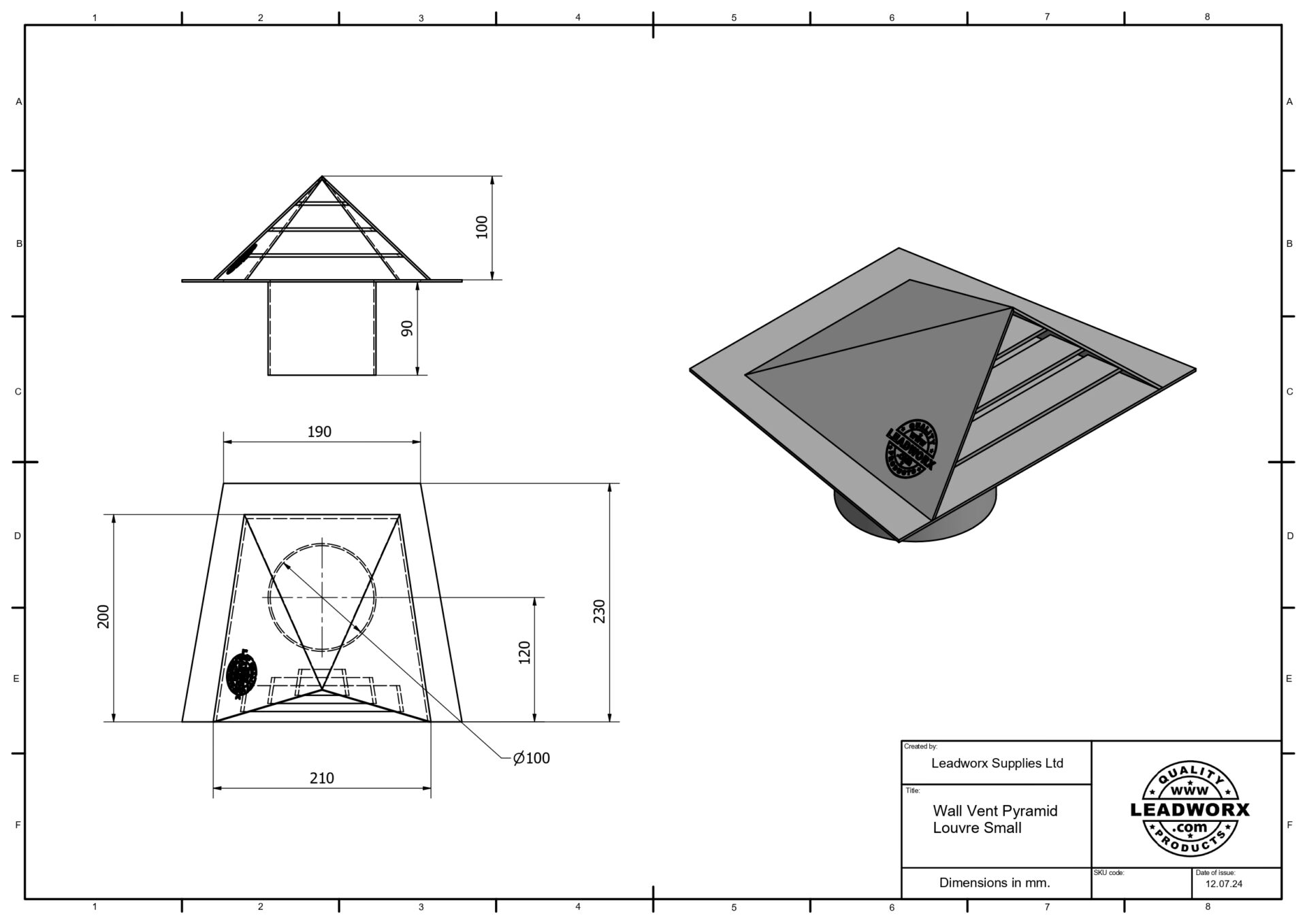

The free area is approximately 10,000mm2 in small and 20,000mm2 in large.
Our wall vent (pyramid – louvre) offer an attractive method of terminating ventilation pipes and extractors to an exterior wall. These aesthetically pleasing vents provide an alternative to the generic plastic versions commonly used and will last a lifetime.
