Lead Half Front Apron Specification

Lead Half Front Apron

Our half front apron chimney flashing’s are designed and fabricated to suit any chimney size and orientation. Ensuring a perfect fit each time.

These chimney flashing’s are all made to order to ensure you get the best product for your property. They can be fitted overlapping, left or right handed, or to flash a chimney on a gable end where the excess can be trimmed and folded to suit. To order half front apron chimney flashing’s, we require the size of the chimney, the pitch of the roof (see how to measure pitch), whether it is a left or right hand flashing (see which is which) and the number of items required.

Specification Sheet

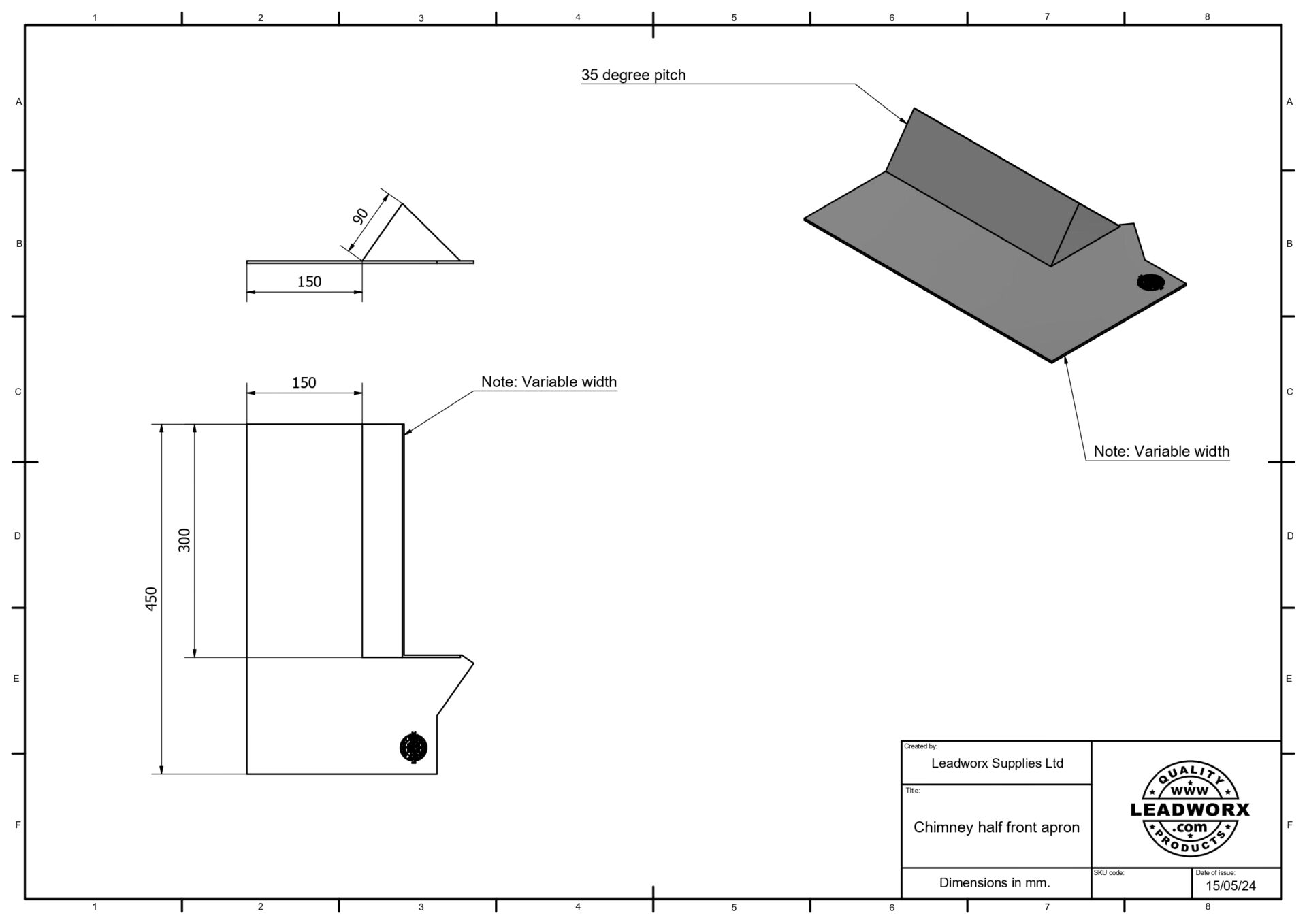

Half Front Apron Specifications

LEADWORX TOOLS

Roof pitch calculator

Calculate from measurements, or estimate the angle from a photograph.

Rise & run

Measure the vertical rise and horizontal run between the same two points.

Horizontal run Rise Roof slope Pitch

Use the same unit for both, such as mm or cm. Run is not the sloping roof length or automatically the full building width.

Enter your measurements to begin.

Calculated roof pitch—degrees from horizontal
Other pitch formats

Enter measurements first.

These formats describe the same slope; they are not product size recommendations.
